RADIOS VARIOS comunicaciones

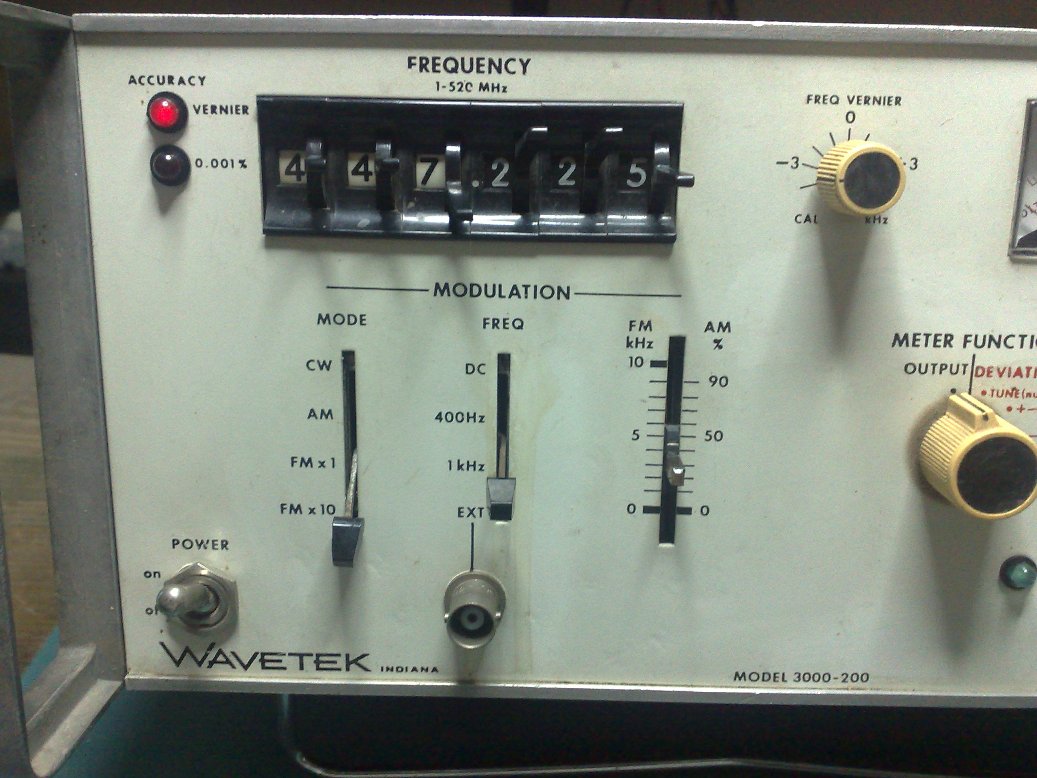

The 3000-200 Signal Generator/Deviation Meter incorporates a complete 1MHz to 520MHz synthesized FM, AM and CW signal generator, and an FM deviation meter in one compact instrument. The combination of two instruments in one is ideal for testing transmitters and receiver sections of FM transceivers. Frequency resolution is 1kHz with an accuracy of ?0.001%. Calibrated RF power output can be varied from -137 to +13 dBm. AM modulation range is 0 to 90%. FM deviation is variable from 0 to 50kHz in two ranges at rates up to 100kHz. A 400Hz and 1kHz internal oscillator is provided for modulation. For transmitter testing the generator is protected against reverse power up to 50 W. The FM deviation meter measures FM from 0 to 50kHz at an RF frequency of 30 to 520MHz with an accuracy of 4%.

Video del instrumento en funcionamiento: http://www.youtube.com/watch?v=uaI5KP10qA0&feature=youtu.be

EQUIPO NUEVO, EN CAJA, 12 MESES DE GARANTÍA.



LA VENTA SOLO INCLUYE EL EQUIPO (SIN FUENTE, SIN REFLECTOR)



PRECIO : U$S 550


5700BH20DD

Description PTP 58100 Full

Market Availability North America, Europe, South America, Asia

Signaling Rate 20 Mbps

Typical LOS Range 1 mi (1.6 km)

Typical Aggregate Useful Throughput 14.0 Mbps

Frequency range of band ISM 5725-5850 MHz

Non-overlapping Channels 6

Channel Width 20 MHz

Modulation Type High Index 4-level Frequency Shift Keying (FSK) optimized for interference rejection

Channel Spacing every 5 MHz

Encryption DES capable

Latency 2.5 msec

Carrier to Interference ratio (C/I) ~3dB @ 10 Mbps, ~10dB @ 20 Mbps at -65dBm

Nominal Receiver Sensitivity (dbm typical) -79 dB

Antenna Gain (dBi) 7 dB

EIRP (dBm) 30 dB

Equivalent Isotropic Radiated Power (EIRP) 1 W

DC Power (typical) 0.34 A @ 24 VDC = 8.2 W

Antenna Beam Width 3 dB antenna beam width 60 degrees, Azimuth and Elevation

Mean Time Between Failure (MTBF) 40 yr

Temperature -40° C to +55° C (-40° F to +131° F)

Wind Survival 190 km/hr (118 miles/hr)

Dimensions 11.75 in H x 3.4 in W x 3.4 in D (29.9 cm H x 8.6 cm W x 8.6 cm D)

Weight .45 kg (1 lb)

Access Method Time Division Duplex (TDD)

Interface 10/100 Base T, half/full duplex. Rate auto negotiated (802.3 compliant)

Protocols Used IPV4, UDP, TCP, ICMP, Telnet, HTTP, FTP, SNMP

Network Management HTTP, TELNET, FTP, SNMP Version 2c

FCC ID ABZ89FC5804

Industry Canada Certification Number 109W-5700

NYCE 0202CE08128

MANUALES ORIGINALES, DE SERVICIO TECNICO

MOTOROLA GP300
MOTOROLA GP68
ICOM IC-F4 / F4S

PRECIO: $ 50

DUPLEXOR VHF DE 4 CAVIDADES, ESTABA INSTALADO EN UNA REPETIDORA MOTOROLA MSF5000 (100 WATTS)

SE ENCUENTRA AJUSTADO EN LAS SIGUIENTES FRECUENCIAS:

RX: 167.255 MHZ
TX: 162.175 MHZ


PRECIO: U$S 650.-

TRANSISTOR MOTOROLA MRF650 (M2530) UHF 40 WATTS

CODIGO: 4880225C30
PARA EQUIPOS: MARATRAC, MAXTRAC,GM300, M208, M120, M130, PRO3100, PRO5100, PRO7100

PRECIO: U$S 85

CLIP PARA CINTURON ORIGINAL MOTOROLA PARA EQUIPOS PRO3150/ PRO5150/ PRO2150
CODIGO: HLN9714  (CLIP LARGO)
CODIGO: HLN9844 (CLIP CORTO)

PRECIO: U$S 12

BASE CARGADORA ORIGINAL MOTOROLA PARA EQUIPOS PRO3150
NO INCLUYE TRANSFORMADOR

GARANTÍA: 6 MESES POR DEFECTOS DE FABRICACIÓN

PRECIO: U$S 55

BATERIA HNN9013  ORIGINAL MOTOROLA

BATERÍAS HNN9008
